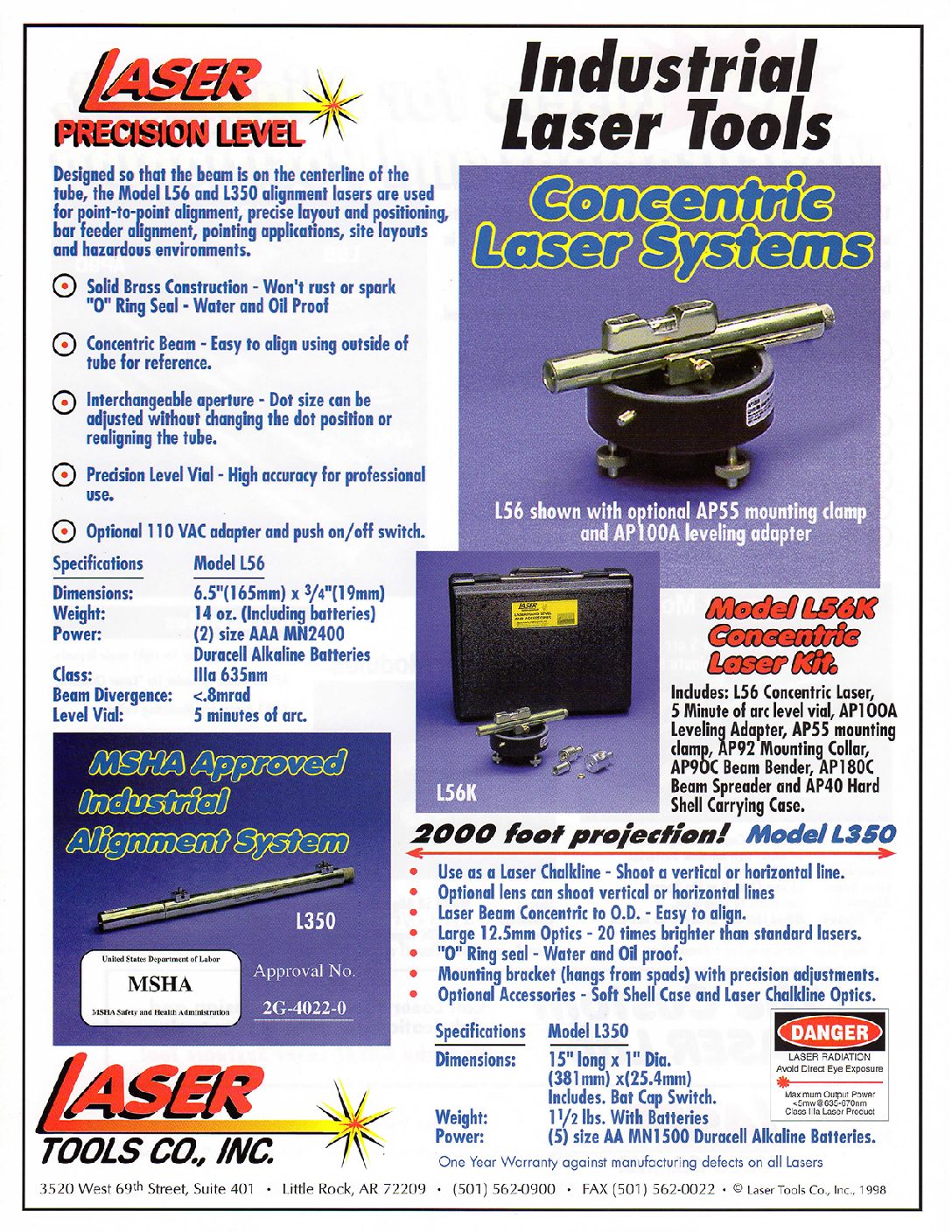

Underground Tunneling Lasers

2000 Foot Projection

Used in above ground and underground operations. The Model L350 is rock steady, extremely rugged and uses 12.5mm optics for a small dot size at distance.

• Solid Brass – Proved to work in Harsh Environments
• Intrinsically Safe – Explosion Proof Containment Not Required
• Dust and Waterproof – Great for Underground Use.
• Adjustable Hanging Brackets Included – Connects to Spads directly
• Precision Beam Alignment – Tabs and Brackets Self Align Laser Beam to Seam.
• Optional CL1000 Line Generator Screws into End of the Laser – Projects a Vertical Laser Line onto the face.

DOWNLOAD PDF #1

DOWNLOAD PDF #2

DOWNLOAD PDF #3

• Dimensions: 15″ long x 1″ Dia. (381mm) x (25.4mm) Includes Bat Cap Switch.
• Weight: 1 1/2 lbs. With Batteries
• Power: (5) size AA MN1500 Duracell Alkaline Batteries.
• Laser Beam:
  • Accurate to +/-1/8″ @ 100 feet
  • 635nm, Class IIIa Diode Laser
  • <5 mw Maximum Output
