Underwater Lasers are intended to be used by ROVs (Remote Operate Vehicles) using video images to take general measurements.   By paralleling two laser beams that are calibrated for set distances, accurate measurements from video images are possible.

The Sea Beam Laser™ attachment for ROV systems is a plug and play measurement device that can be attached or removed from the vehicle in seconds.

$1,995.00$2,500.00

Clear

Underwater Lasers are intended to be used by ROVs (Remote Operate Vehicles) using video images to take general measurements.   By paralleling two laser beams that are calibrated for set distances, accurate measurements from video images are possible.

The Sea Beam Laser™ attachment for ROV systems is a plug and play measurement device that can be attached or removed from the vehicle in seconds.  The laser accessory projects two vertical “fan” beams precisely 75 mm (3 in) apart for scaling, estimating, or measuring applications.  The “fan” nature of the laser beams fills the entire field of view of the ROV camera so that no tilting mechanism is necessary.

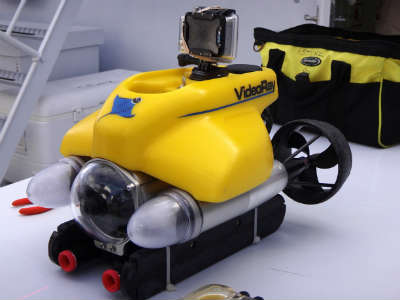

The Sea Beam Laser™ can be used with existing VideoRay ROVs and accessories such as a manipulator arm and sonar systems.

Two models of the Sea Beam Laser™ are available and can be customized with green and red diodes or with dots and lines.  This will make the perfect scaler for any underwater application.

  • The Sea Beam Laser™ with red dot makes the perfect scaler for marine biologist, fish farms, reef surveys and structure sizing – Remember; you don’t want to scare the fish away when you are scaling the reef.
  • The Sea Beam Laser™ with lines will be the perfect fit for scaling and dimension sizing.

Underwater Laser Systems for Observation, Measurement & Survey

Used with all ROVs to provide reference points to determine the size of objects without depth perception errors.

How It Works:
The Sea Beam™ projects two lines 75mm apart onto underwater objects. This provides a precision scale for size reference when viewed by eye or camera.

  • 90 Durameter Urethane – Won’t corrode in salt water
  • Battery Operated – Will work with all ROVs
  • Red or Green Laser Light – 50 times brighter laser line with green
  • Weight less than 2.5 Oz (90gm) in Salt Water – Minimal effect on buoyancy

Laser Tools Co. has the means to integrate and internalize our laser systems into your design to meet your specifications.  This will increase the value of your ROVs.

  • Dimension: 2.5”(63.5mm)L x 4”(101.6mm)W x 1”(25.4mm)H
  • Model SB20 – Battery Powered Only
    • Power: 1 CR123A 3V Lithium Battery, Over 8 hours of continuous use.
  • Model SB10 – Dual Powered by Battery or External Power Cord
    • Power: Power Cord 15” (38mm) with Subconn’s 4 pin connector or 3V CR123A Lithium Battery
  • Model GLXSB20 – Operates from 12VDC to 36VDC
    • 10x brighter laser beams, aluminum housing and 60° Line Generator Lens.
  • Options: User Specified Power Cord including length and termination plug – Green Laser Technology™ – 1/16”, 3/32” or 1/8” apertures for laser dot sizing
