New Brighter, direct drive GREEN laser diode
“This means more power and more reliability”.

• 10 times brighter laser beam – you can see the laser dot in direct sunlight.
• Broad operating temperature range – Operates in extreme cold or hot conditions.
• Accurate to 1/8” @ 100’ – Improves single person, layout precision.
• Operating range extended to over 500’ – No job too big.
• Precision 5 minute of arc level vial – 9 times more sensitive.

Use with the optional AP90C Beam Bender™ for one man layouts.

Includes a ¼”-20 tpi mounting hole on the flat bottom for tripod mounting.  Use as a builder’s level, transit head or machinist’s level.

DOWNLOAD PDF

SPECIFICATIONS

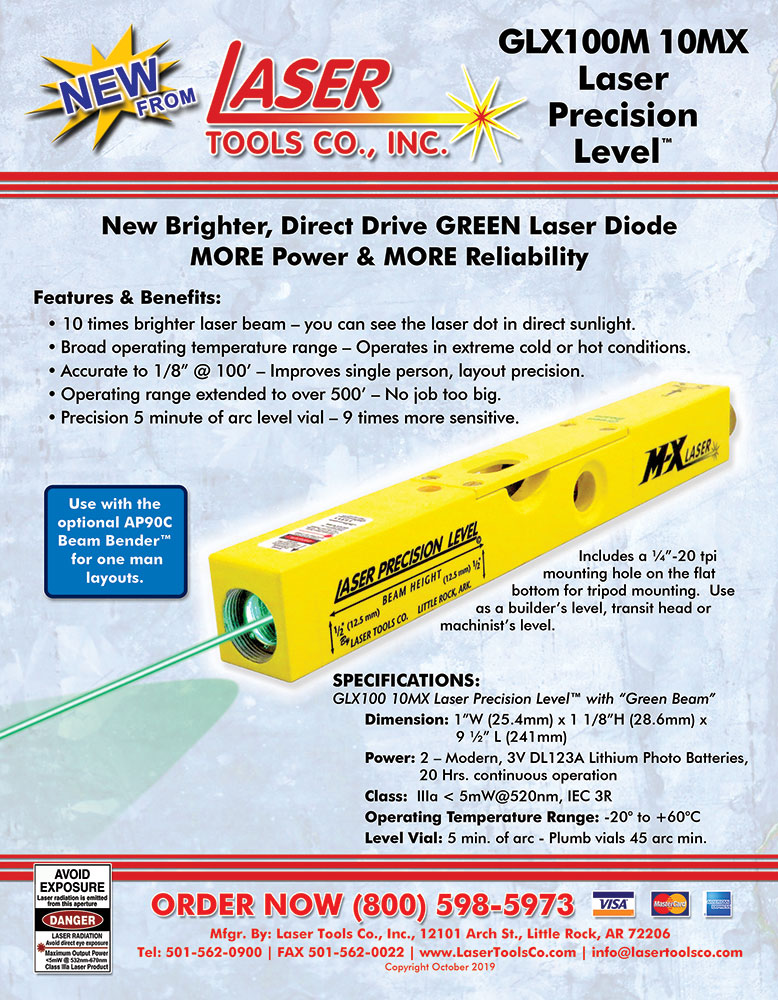

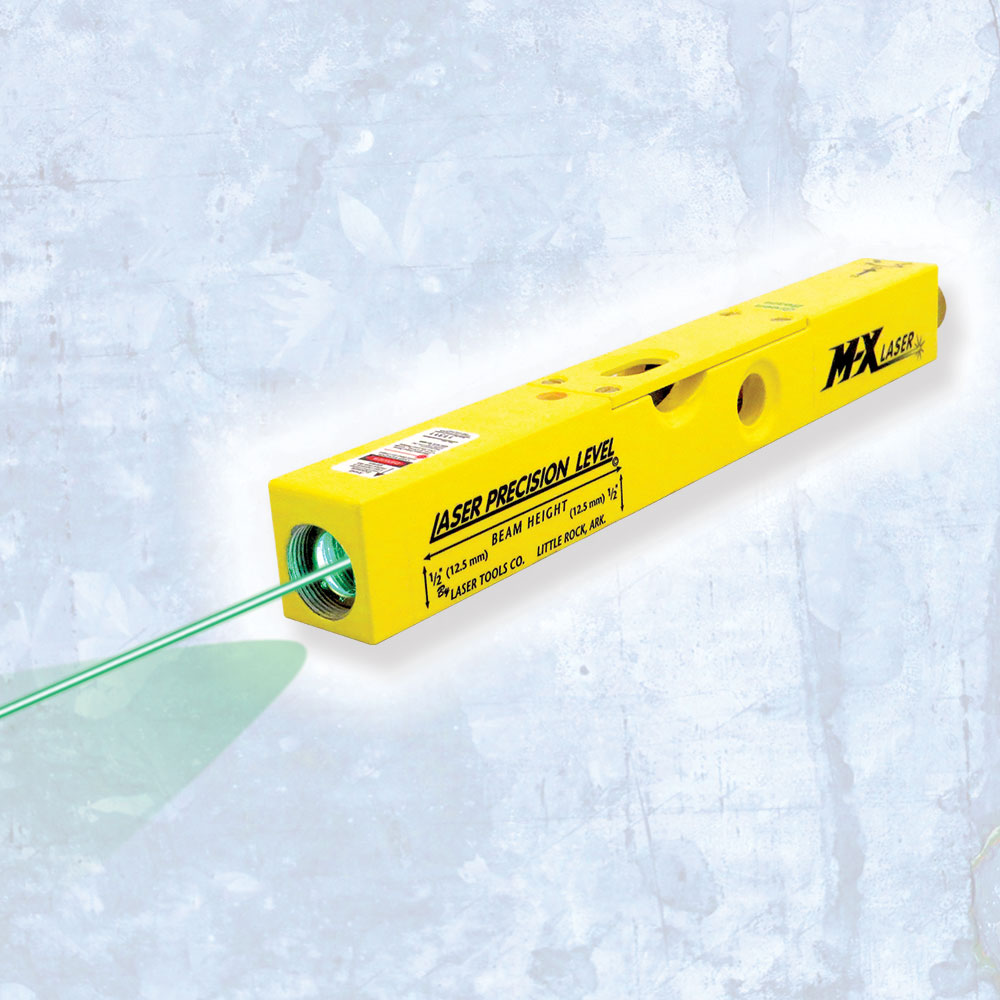

GLX100 10MX Laser Precision Level™ with “Green Beam”

• Dimension: 1”W (25.4mm) x 1 1/8”H (28.6mm) x 9 ½” L (241mm)
• Power: 2 – Modern, 3V DL123A Lithium Photo Batteries, 20 Hrs. continuous operation
• Class:  IIIa < 5mW@520nm, IEC 3R
• Operating Temperature Range: -20° to +60°C
• Level Vial: 5 min. of arc – Plumb vials 45 arc min.
