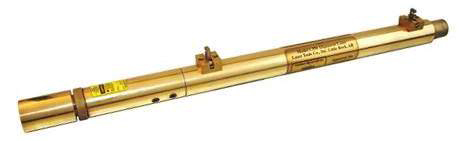

L355X Long Distance Alignment Laser
This is the perfect Long Distance Alignment Laser suitable for alignment applications in tunnels, when building bridges or sinking mine shafts, installing cranes, conveyors, surveying and much more. Our Long Distance Laser is proven to increase efficiency and significantly reduce man hours.
This is the perfect Long Distance Alignment Laser suitable for alignment applications in tunnels, when building bridges or sinking mine shafts, installing cranes, conveyors, surveying and much more. Our Long Distance Laser is proven to increase efficiency and significantly reduce man hours.
What is a CircuLaser™ Diode System?
CircuLasers™ are standard laser diode to generate a high power, low-divergence, circular, diffraction-limited beam. They are packaged exactly the same as a standard laser diode. The µLens™ is only apparent by the way it transforms and corrects the beam output. CircuLaser™ laser diode sources integrate the technology with a standard laser diode to generate a high power, low-divergence, circular, diffraction-limited beam.
2 Lasers to choose from:
- L355X Extreme Long Distance Alignment Red Laser
- Includes:
- Adjustable spad hanging tabs
- 10LD 10mW, 635nm,
- Circulaser™ laser diode with u lens
- AP355 2-mile beam extender
- 5 “AA” size batteries
- Includes:
- L355X MSHA Extreme Long Distance Intrinsically Safe Alignment Red Laser (Mine Safety & Health Admin.)
- Certified for use in hazardous environments esp. methane-air mixtures
- Includes:
- Adjustable spad hanging tabs
- 10LD 10mW, 635nm
- Circulaser™ laser diode with u lens
- AP355 2-mile beam extender
- 5 “AA” size batteries
- GL355X Green Laser Technology™ Extreme Long Distance Alignment Laser
- Includes:
- Adjustable spad hanging tabs
- 10LD 10mW, 635nm,
- Circulaser™ laser diode with u lens
- AP355 2-mile beam extender
- 5 “AA” size batteries
- Includes:
- GL355X MSHA Green Laser Technology™ Extreme Long Distance Intrinsically Safe Alignment Laser (Mine Safety & Health Admin.)
- Certified for use in hazardous environments esp. methane-air mixtures.
- Includes:
- Adjustable spad hanging tabs
- 10LD 10mW, 635nm
- Circulaser™ laser diode with u lens
- AP355 2-mile beam extender
- 5 “AA” size batteries
DOWNLOAD PDF #1
DOWNLOAD PDF #2
SPECIFICATIONS |
|
|---|---|
| Model | L355X Extreme Long Distance Alignment Red Laser |
| Power | 5 “AA” size batteries |
| Laser Beam | Class IIIa <10mW @ 635nm |
| Range | Up to 2 miles |
| Accuracy | 1.5″ Dot @ 1,000′ |
| Dimensions | 17″L x 1″Dia |
| Housing | Solid Brass |
| Model | L355X MSHA Extreme Long Distance Intrinsically Safe Alignment Red Laser (Mine Safety & Health Admin.) |
| Power | 5 “AA” size batteries |
| Laser Beam | Class IIIa <10mW @ 635nm |
| Range | Up to 2 miles |
| Accuracy | 1.5″ Dot @ 1,000′ |
| Dimensions | 17″L x 1″Dia |
| Housing | Solid Brass |
| Model | GL355X Green Laser Technology™ Extreme Long Distance Alignment Laser |
| Power | 2 “D” size Batteries |
| Laser Beam | Class IIIb <15mW @ 635nm |
| Range | Up to 2 miles |
| Accuracy | 3/4″ dot @ 1000″ |
| Dimensions | 11 1/4″L x 1 5/8″ Dia. |
| Weight | 4 Lbs. |
| Housing | Solid Brass |
| Model | GL355X MSHA Green Laser Technology™ Extreme Long Distance Intrinsically Safe Alignment Laser (Mine Safety & Health Admin.) |
| Power | 2 “D” size Batteries |
| Laser Beam | Class IIIb <15mW @ 635nm |
| Range | Up to 2 miles |
| Accuracy | 3/4″ dot @ 1000″ |
| Dimensions | 11 1/4″L x 1 5/8″ Dia. |
| Weight | 4 Lbs. |
| Housing | Solid Brass |
| Select Model | L355X, L355X MSHA, GL3555X, GL355X MSHA |
|---|
