L600 Laser Crosshair Line Generator

“You can adjust each line by rotating precision beam steering optics on the front of the model L600.”

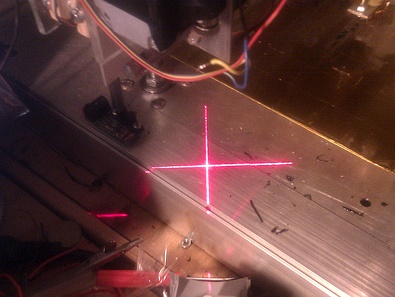

This dual beam line generator system is used for marking, positioning, aligning; establishing orientation and aiming. The L600 Crosshair Line Generator is industrial tough and loaded with extras.

This is a perfect use for any manufacturing and product assembly and highly recommended for alignment and registration applications.

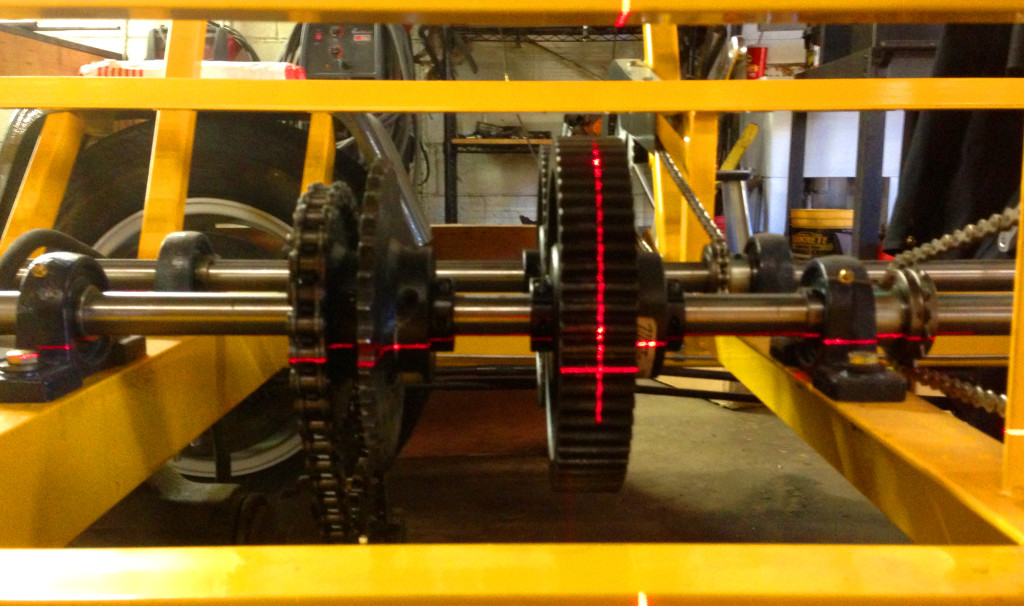

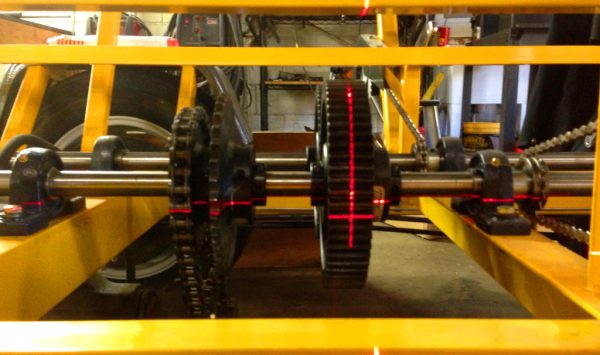

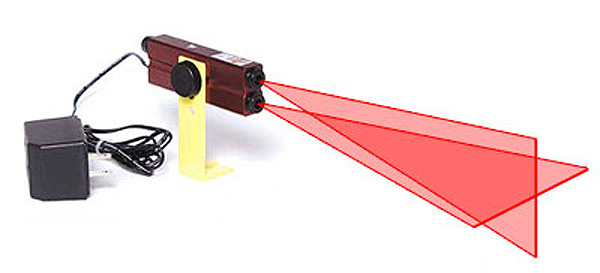

*Show with AP94 Adjustable Mounting Bracket

6 Models to choose from:

• L600AC – Red Laser Crosshair Generator
  • Includes: Push button, on/off switch, 5′ cord, 70° Line Divergent Angle, AP94 L Bracket and AC adapter
  • 110 VAC
• L600DC – Red Laser Crosshair Generator
  • Includes: Push button, on/off switch, 5′ cord, 70° Line Divergent Angle, AP94 L Bracket and AC adapter
  • 4.75-36 Volts DC Power
• L600DC GM – Red Laser Crosshair Generator
  • Includes: 2 laser diodes, 2 lines and Turck power connector
  • 24 volts DC power
• L600DC P&G – Red Laser Crosshair Generator
  • Includes: 1 laser diode,1 line and Turck power connector
  • 24 volts DC power
• GL600AC – Green Laser Crosshair Generator
  • Includes: Push button, on/off switch, 5′ cord, and AC adapter
  • 110 VAC
• GL600DC – Green Laser Crosshair Generator
  • Includes: Push button, on/off switch, 5′ cord
  •  3 VDC (Order PS18 or PS36 for other power options)

Benefits:

• Cylindrical lens technology – Solid glass optical system draws a continuous line at any distance.
• Coarse & fine position adjustment – eases setups and provides pinpoint movements for each line.
• Variable line lengths – Choose between 15, 30 and 70 degree divergent lines.
• Mounting bracket included – 1/4-20 tpi thumbscrews and “L” bracket provides complete adjustment range – up, down, right or left.
• Line widths – Choose between different line widths. Line structure can fit the application.
• Push on/off switch – Turn unit on and off without having to disconnect power.
• Beam on Indicator – Two indicators top & bottom for easy viewing.
• Hard Anodized – Scratch resistance with elegant styling and distinctive red color.
• Laser Diode – Rated for 10,000 hours of operation or 5 years normal operating condition.
• AC power adapter included – Ready to operate on standard 110 AC power.
• Voltage – All external wiring operates on low, safe voltage

Options:

• • Magnetic Mounting Bracket (AP202)
  • 4-24 VDC power option
  • Battery pack available
  • 10mW Extreme brightness laser diode
  • Green Laser Technology™
  • *Shown with optional Magnetic Mounting Bracket
