GLX600AC-30 Laser Crosshair Generator Dual Beam Laser Kit

Laser Crosshair Generator Standard

Each 60° divergent Laser Line is rotated 90° with respect to each other to create a crosshair that can be used to position parts, form registration marks, project laser lines for layouts and provide index points.  The laser lines are uniform in intensity.

• Cylindrical lens technology – Solid glass optical system draws a continuous line at any distance.
• Coarse and find position adjustment – Eases setups and provides pinpoint movements for each line.
• Variable line lengths – Choose between 15, 30 and 60 degree divergent lines.
• Mounting bracket includes – 1/4-20 tip thumbscrews and “L” bracket provides complete adjustment range – up, down, right and left.
• Line widths – Choose between different line widths. Line structure can fit the application.
• Push on/off switch – Turn unite on and off without having to disconnect power.
• Bean on Indicator – Two indicators, top and bottom, for each viewing.
• Powder painted – Scratch resistance with elegant styling and distinctive red color.
• Laser Diode – Rated for 10,000 hours of operation or 5 years normal operating condition.
• AC power adapter included – Ready to operate on standard 110AC power.
• Voltage – All external wiring operates on low, safe voltage.

“Put the power where you need it”

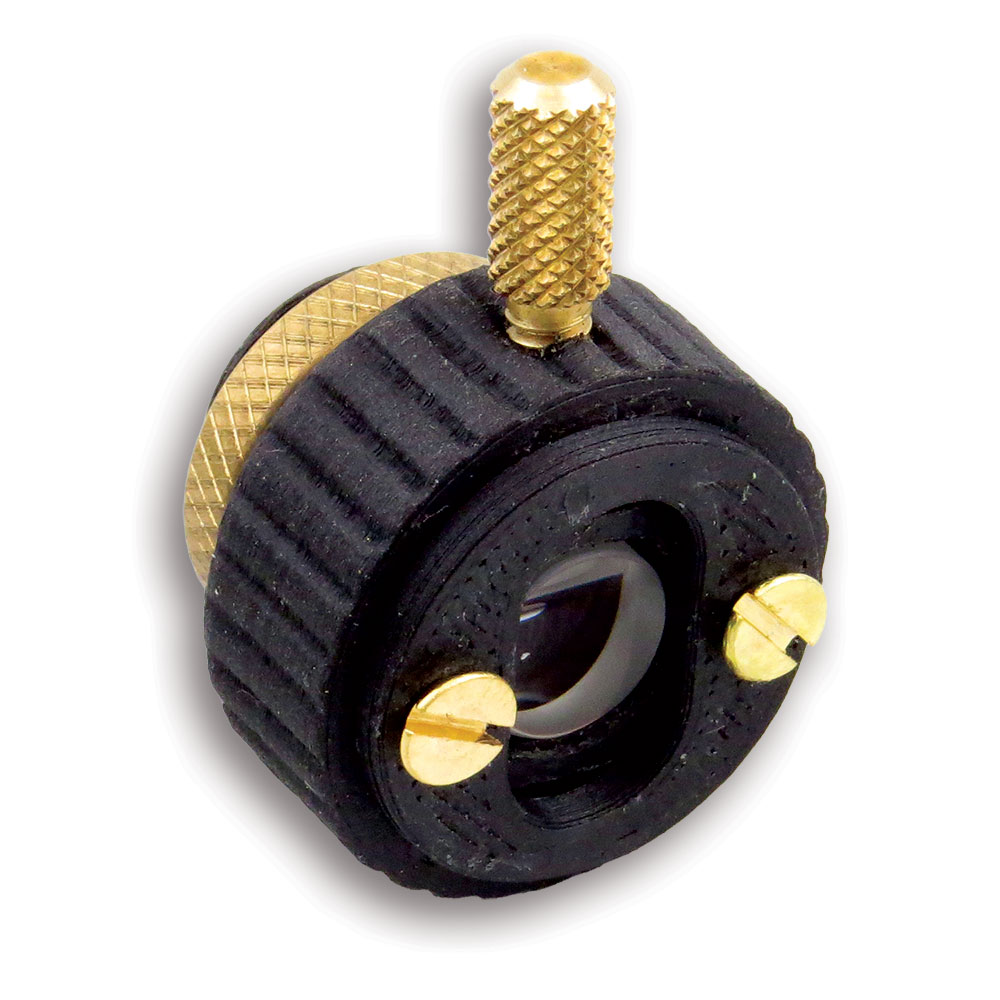

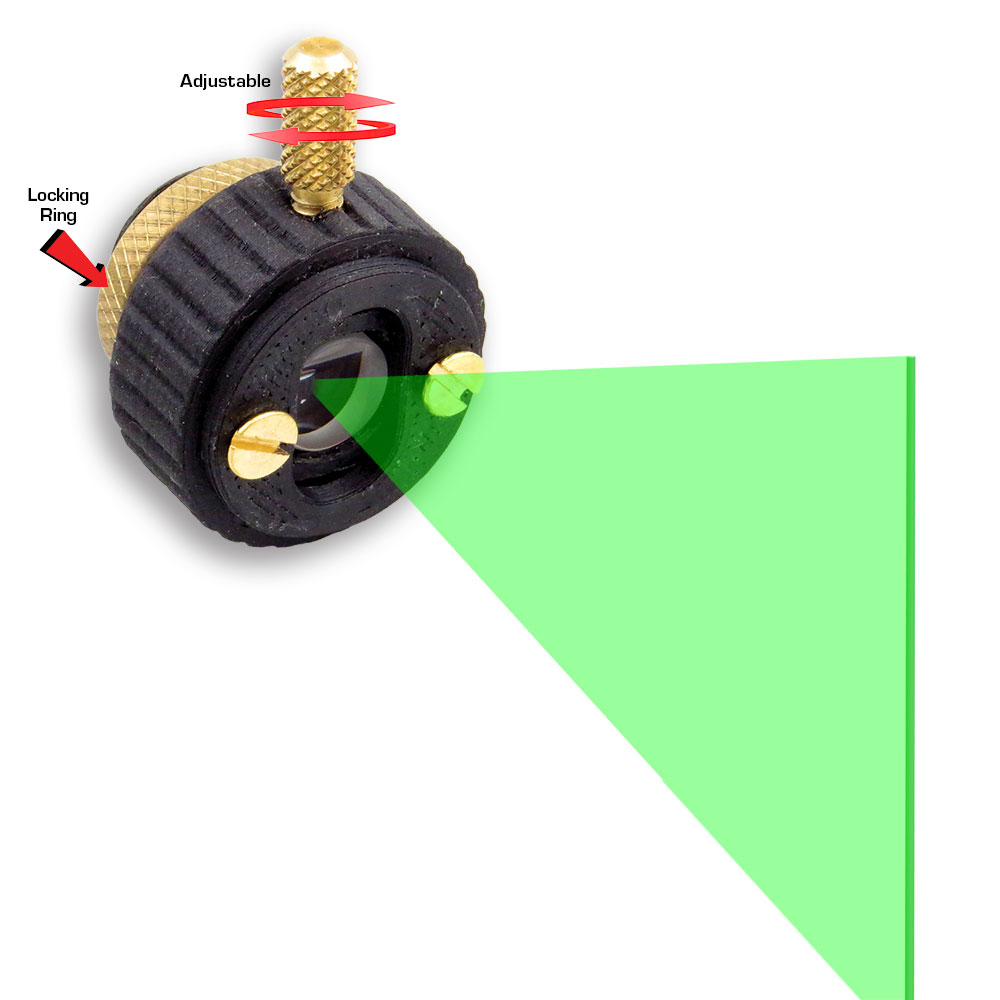

The AP185A Beam Shaper™ works along with the optional AP185B Beam Shifter™ to move the intensity of the laser light along the line. This means that you can evenly illuminate the laser line when the laser module is pointing at the working surface at an angle.

Dual Beam Power!
30mW Standard, 50mW Optional

Overlap the green laser lines and produce double the brightness! This means that you can control the laser line’s

• Angle
• Intensity Distribution
• Position
• Linearity

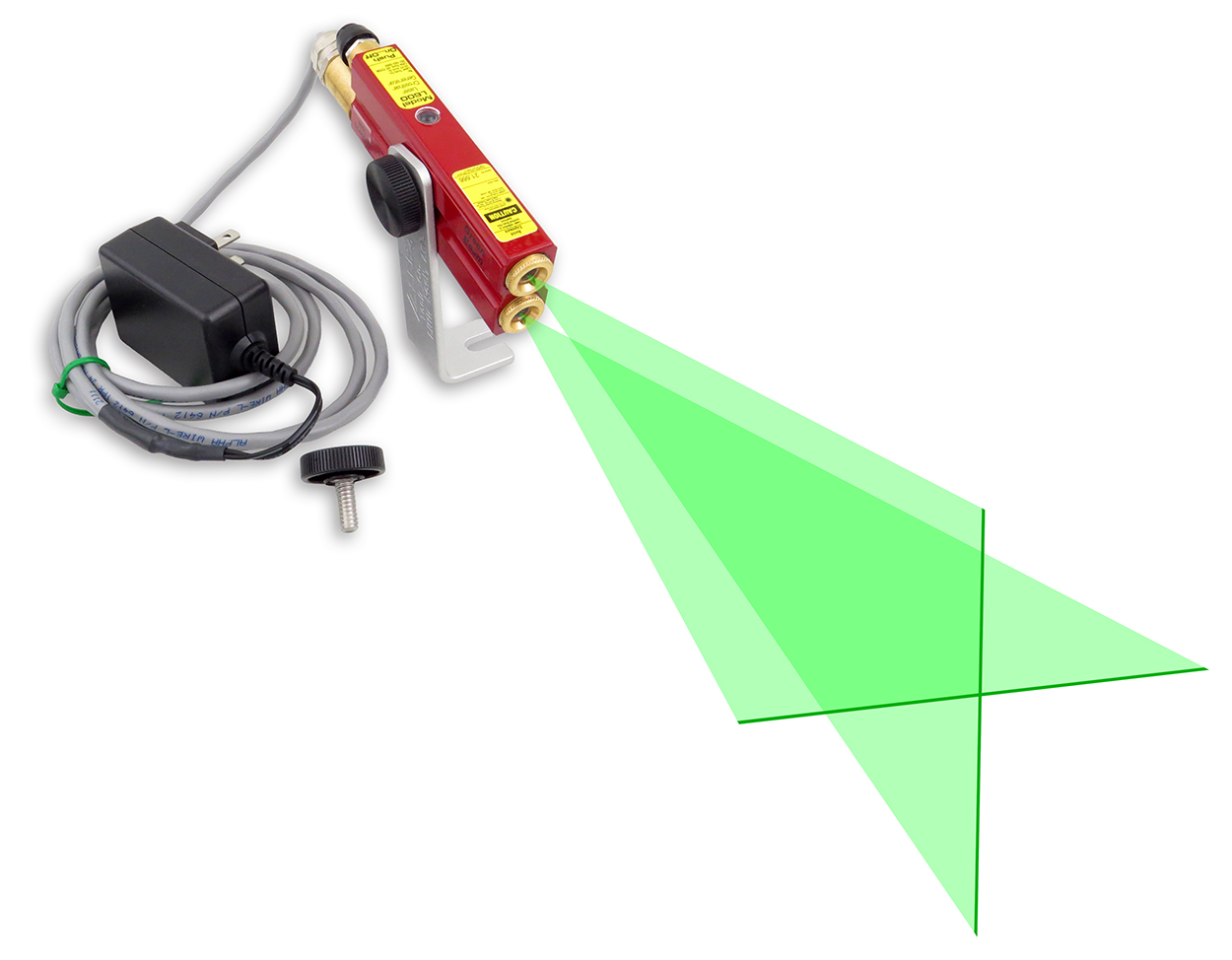

Model GLX600AC-30 Dual Beam Laser Kit Includes:

• 30mW, Dual Green Laser Crosshair Generator Module (50mW optional)
• *2 AP185A Beam Spreaders™ with 60° Line Generator
• 2 2° Wedge Prisms for fine line positioning
• Powder Painted, Dual Laser Case with Power Regulator
• AP94 Mounting Bracket
• Push On/Off Switch with 5′ power cord.

Model GLX600DC-30 Dual Beam Laser Kit Includes:

• 30mW, Dual Green Laser Crosshair Generator Module (50mW optional)
• *2 AP185A Beam Spreaders™ with 60° Line Generator
• 2 2° Wedge Prisms for fine line positioning
• Powder Painted, Dual Laser Case with Power Regulator
• AP94 Mounting Bracket
• Push On/Off Switch with 5′ power cord.

* Or substitute 10° or 30° Line Generator Lens Assemblies

AP185B Beam Shifter™ with 60° Line Generator can be purchased separately.
