Improper equipment geometry can result in the loss of production time. Our 58 Series Alignment Lasers are used to align, aim, and position parts amd machinery to instantly and accurately measure X-Y deviation at any point along the line up to 300 feet long.

$295.00$440.00

Clear

110VAC Operation – No wiring required.  Mounting Bracket Included – Easy Installation, Bright 635nm Laser Beam – Draw dots or lines. Economy Priced – Easy on the wallet! This is a great laser for contruction layouts, measuring, industrial aiming, positioning, marking.

All precision equipment must be aligned in order to deliver accurate and quality parts.

Improper equipment geometry can result in the loss of production time. Our 58 Series Alignment Lasers are used to align, aim, and position parts and machinery to instantly and accurately measure X-Y deviation at any point along the line up to 300 feet long.

This is the perfect tool for projecting a point of reference for an exact measurement. It’s used in industrial and commercial applications including manufacturing and assembly operations. Add a line generator lens system and the L/GL58 becomes the standard alignment system for process control Machines which are aligned accurately will suffer less wear and tear and increase productivity and profitability of the company.

The laser beam is aligned with the outside diameter of the case. This means that you can use the outside of the case for centering and positioning the beam. Our 58 series are made of solid brass.

  • All glass optics – Won’t cloud over in harsh environmnent
  • Wedge prisms for beam steering – Beam will stay in position even if dropped
  • Water and dust proof – Suitable for industrial requirements
  • Different power option – 4 to 36VDC (use with PLC controllers)

A cylindrical lens is a round bar or cross section of glass through which the collimated laser light passes and then spreads into a fan beam to form a line. The line length is determined by two factors:

  1. 1. The radius (curve) of the glass
  2. 2. The laser beam’s cross sectional size.

Example: To lengthen a laser line, shorten the radius of the cylindrical lens (grind the glass so that the curve is more sharp). This will make the line spread (diverge) faster. To shorten a laser line, decrease the size (cross section) of the laser beam. The smaller the laser beam, the less the beam will interact (hit) the more curved part (the outer edges) of the cylindrical lens. In other words, a small laser beam goes through the middle of the lens and isn’t changed (refracted) much. The reverse is true for large laser beams and longer radius (less curved) cylindrical lens.

The cylindrical lens types used with the L58 Laser Dot Generator decrease their radius proportionally as the line lengthens. The laser beam size is not changed. This is a simple but effective design approach for industrial customers.

You can customize your laser with accessories:

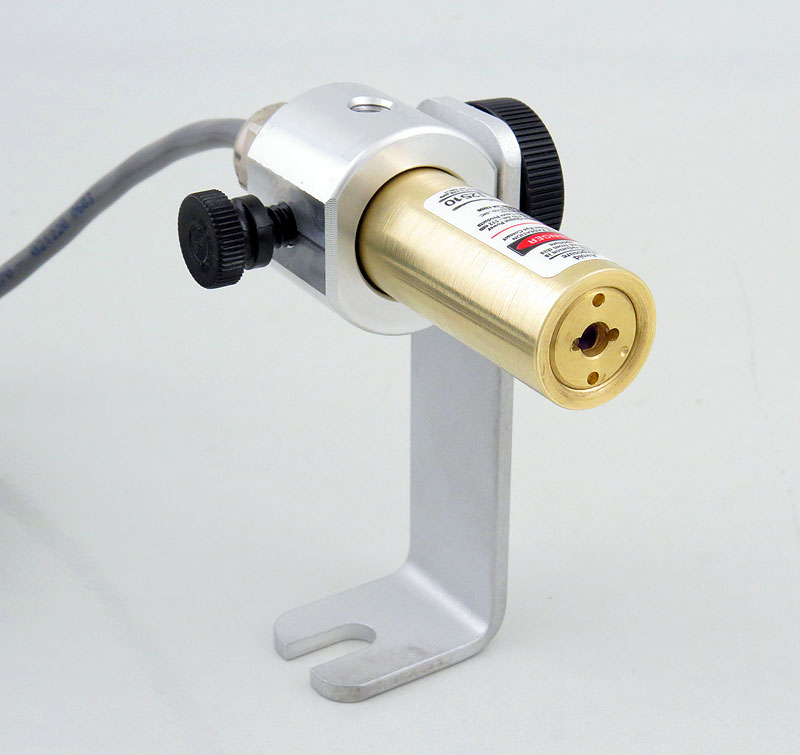

  • AP94 Mounting Bracket – Includes 3/4″ diameter mounting block and “L” bracket
  • AP15 Aperture Pack – Resizes beam to 1/16″, 3/32″ or 1/8″
  • 10LD 10mW – Upgrade for bright red laser beam
  • AP185 Beam Shaper – Draws adjustable brightness laser line

L58AC Alignment Module

  • Includes 5′ Cord and AC Adapter

L58DC Alignment Module

  • Includes 5′ Cord and AC Adapter

L58SAC Ecomony Alignment Module

  • Includes 5′ Cord and AC Adapter

L58DRL Center Point, Alignment Laser

  • Includes Center Point and Beam

L58GM Alignment Module

  • Includes 4 pin male Turck Power Connector

Specifications:

Model L58 Alignment Module:

  • Power:
    • L58AC – 110 VAC wall transformer included
    • L58DC – 4.75-36 VDC @ 50ma. Polarity protected
    • Dimension: 3 1/4″L (82.5mm) x 3/4″Dia. (19mm)
    • Beam Divergence: Laser Beam Power: 635nm Class IIIa < 5mW
    • Concentricity: Accurate to +/- 1/8″ @100 ft.
    • Optimal Operating Temperature Range: -10°C to +50°C

L58AC Alignment Module

  • Power:110 Volts AC
  • Dimensions 3 1/4″ L x .75″ Dia.

L58DC Alignment Module

  • Power: 4-24 Volts DC
  • Dimensions 3 1/4″ L x .75″ Dia.

L58SAC Ecomony Alignment Module

  • Power 110 VAC

L58DRL Center Point, Alignment Laser

  • Power 3 Volts DC
  • Dimensions 5 1/4″ L x .75″ Dia.

L58GM Alignment Module

  • Power: 4.75-36 Volts DC
  • Dimensions 4 1/4″ L x .75″ Dia.
