L700 MSHA Dual Beam Mining Alignment Laser

Extend alignment accuracy by using one beam as a “Tacking Point” and align 2 points from the middle.

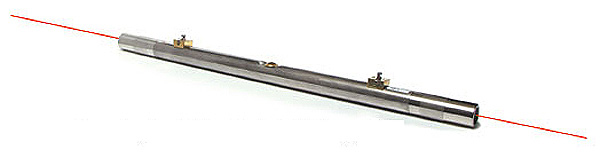

Shown in optional stainless steel with slotted support tabs.
“Back Sight to Spad alignment points”

• Aerodynamic – Proven stable in high vent areas
• Intrinsically Safe – Works in Methane/Air mixtures
• Dust and Waterproof – Great for longwall and hard rock use
• Adjustable Spad Hanging Tabs and Brackets – Laser stays on target even during ventilation
• Includes – 6 “AA” Size Alkaline Batteries (L700 & L700 MSHA)(4 “AA” Batteries for GL700 & GL700 MSHA)
• Dimensions – 20″L (508mm) x 1″Dia. (25.4mm)
• Housing made from Solid Brass

4 Models to choose from

1. L700 Dual Beam Mining Alignment Laser
2. L700 MSHA Dual Beam, Intrinsically Safe Mining Alignment Laser
3. GL700 Green Beam Technology™ Dual Beam Mining Alignment Laser
   1. Certified for use in hazardous environments especially Methane-Air Mixtures.
4. GL700 MSHA Green Beam Technology™ Dual Beam, Intrinsically Safe Mining Alignment Laser
   1. Certified for use in hazardous environments especially Methane-Air Mixtures.

Each model above includes:

• Adjustable spad hanging tabs
• 6 “AA” size batteries. (4 batteries for GL700 & GL700 MSHA)

Use with accessories for aiming, positioning and aligning.

• AP353A Mounting Base and Magnetic Dovetail
• AP351 Ring Set
• AP94 Mounting Assembly
