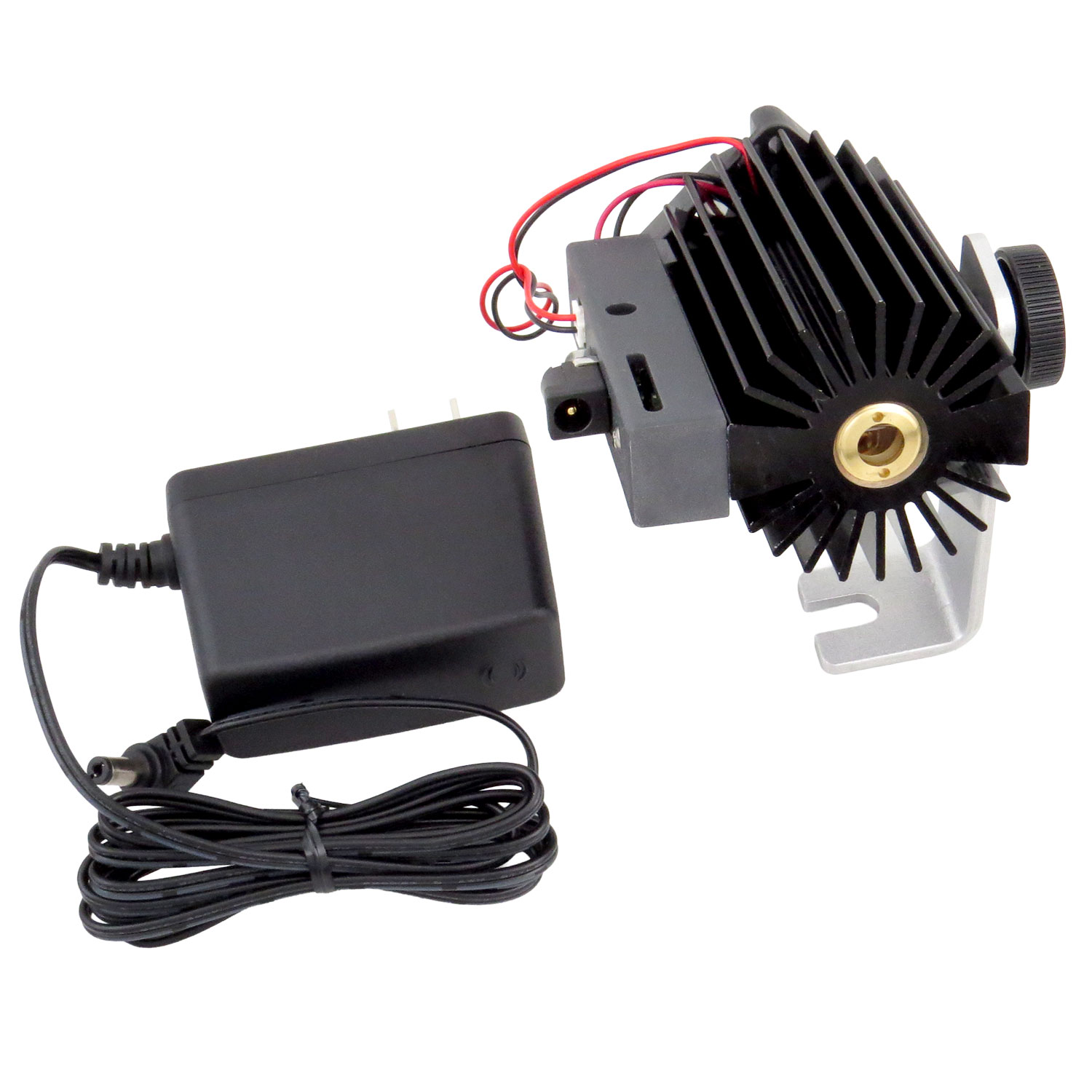

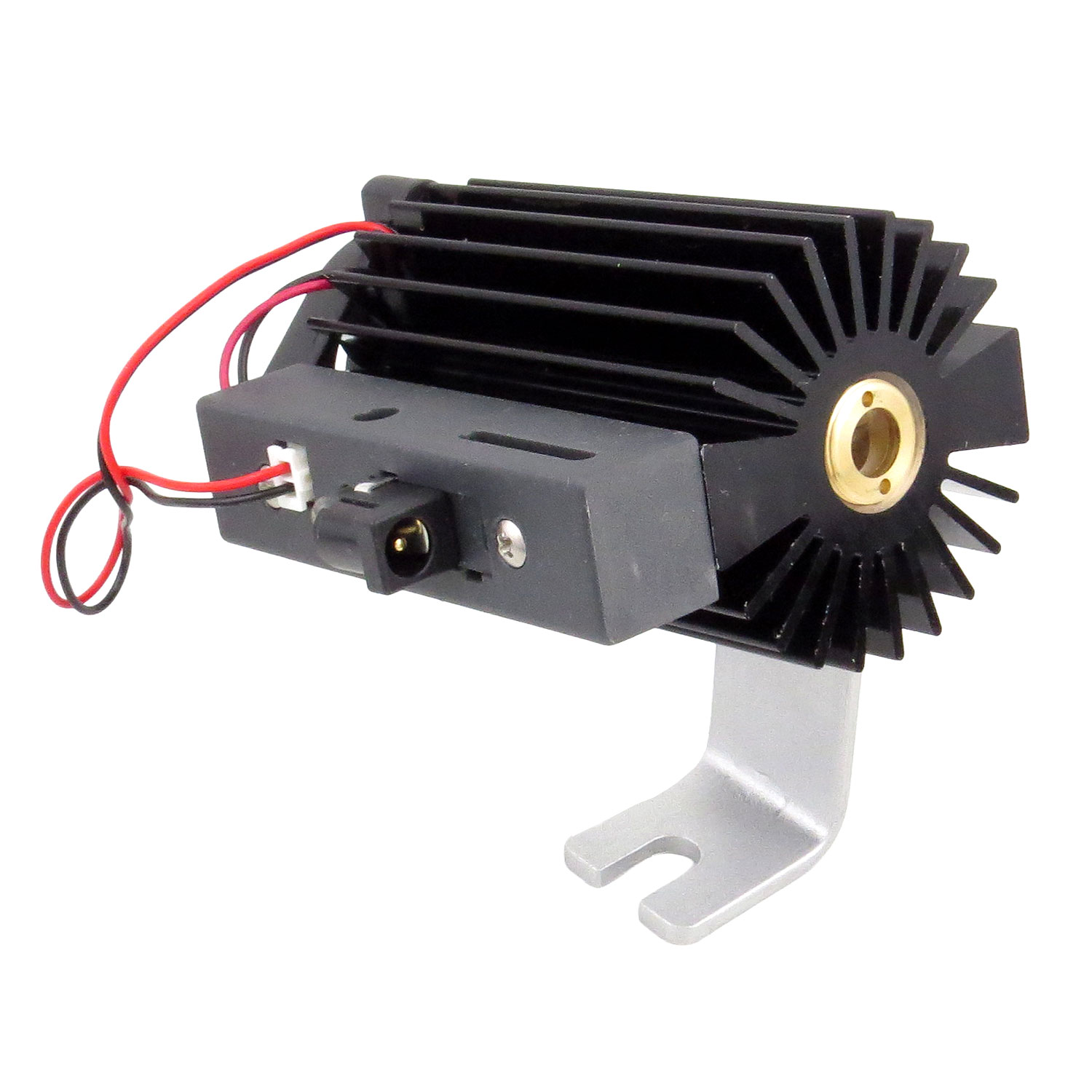

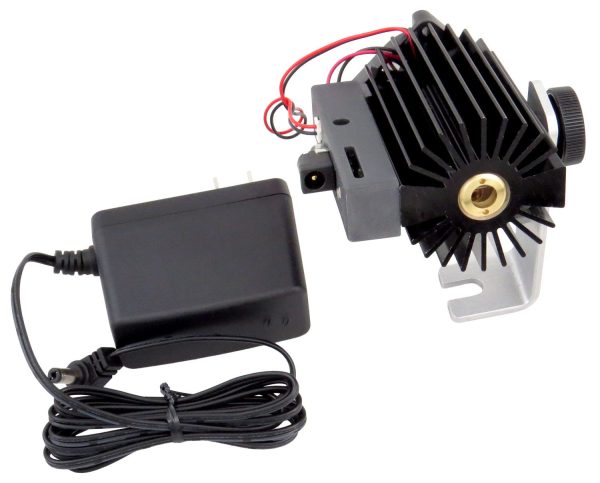

GLX60AC & GLX60DC High Brightness Laser Modules
Our newest GLX60AC & GLX60DC Green Beam Industrial Alignment Modules is a very powerful 500mW and 1000mW line laser. Projects a brilliant, visible line instead of a dot. The brightest of our module available for industrial application and extremely economically priced. This produce a brighter laser line for use in marking, measuring and layouts.
Introducing the
GLX Green Light Laser Systems
The GLX60AC and GLX60DC 500mW and 1000mW High Brightness Green Beam Industrial Laser Modules from Laser Tools, Co., provide an even intensity distribution laser line. This line has the same uniform width over the entire line length. This means that longer lengths can be covered and used for measurements and positioning. When the laser line is shining onto a surface at a low angle, the GLX60AC or GLX60DC is recommended.
DOWNLOAD PDF
SPECIFICATIONS |
|
|---|---|
| Model | GLX60AC-500mW Laser Module |
| Includes | AP94 Mounting Bracket AC Power Adapter with 5′ power cord Large Angle Line Generator Lens and cooling fan 90° Divergent, Even Intensity, Line Generator Lens |
| Laser Power | Class IIIa <5mW @ 520nm |
| Power | 110VAC 50/60HZ |
| Dimension | Approx. 4″L x 4″H x 3″W |
| Weight | 10oz |
| Other | Indoor operation only |
| Model | GLX60DC-500mW Laser Module |
| Includes | AP94 Mounting Bracket AC Power Adapter with 5′ power cord Large Angle Line Generator Lens and cooling fan |
| Laser Power | Class IIIa <5mW @ 520nm |
| Power | 12-24VDC @ 2A power required |
| Dimension | Approx. 4″L x 4″H x 3″W |
| Weight | 10oz |
| Other | Indoor operation only |
| Model | GLX60AC-1000mW Laser Module |
| Includes | AP94 Mounting Bracket AC Power Adapter with 5′ power cord Large Angle Line Generator Lens and cooling fan 60° Divergent, Even Intensity, Line Generator Lens |
| Laser Power | Class IIIa <5mW @ 520nm |
| Power | 110VAC 50/60HZ |
| Dimension | Approx. 4″L x 4″H x 3″W |
| Weight | 10oz |
| Other | Indoor operation only |
| Model | GLX60DC-1000mW Laser Module |
| Includes | AP94 Mounting Bracket AC Power Adapter with 5′ power cord Large Angle Line Generator Lens and cooling fan |
| Laser Power | Class IIIa <5mW @ 520nm |
| Power | 12-24VDC @ 2A power required |
| Dimension | Approx. 4″L x 4″H x 3″W |
| Weight | 10oz |
| Other | Indoor operation only |
| Select Model | GLX60AC-500mW, GLX60DC-500mW, GLX60AC-1000mW, GLX60DC-1000mW |
|---|
