Description
Professional contractors and avid DIY experts rely on precision laser tools for faster and more consistent operation. The Model L100M series MX Laser Precision Level™ is our top-selling precision level equipment. This portable device includes a built-in laser that improves user-visibility and project accuracy.
The built-in laser emits a harmless light from the end of the precision level, which yields a laser dot visible on almost any surface.
The laser add-on also lengthens the level reference to over 100 feet, a huge advantage when working in a large outdoor site.
The Model L100M only needs a single operator to complete any leveling jobs. It’s easy to setup and requires virtually no additional assistance. This is the perfect tool for independent contractors who require working with pinpoint accuracy. Laser levels are also excellent tools for transferring ceiling layouts, lining up electrical outlets, or even building decks.
This means..
- Layouts are done in minutes with the quickness of a hand tool and accuracy of a laser.
- Shoot 10 feet or 100 feet straight. No more strings, transits, or messy water levels to set up for long runs.
- Precisely level a complete floor from wall to wall or a concrete slab and all the forms, or a ceiling. It’s all done FAST and LASER accurate.
- Interior and exterior pipe work, wiring, duct work, and plumbing can be laid out, leveled or sloped as required, and installed using the laser beam as a guide. Leave the guess work to someone else.
- Also available with Green Laser Technology™ as the GL100M and GL100M MSHA
How It Works
- Measure level or plumb using the precision level vial or two plumb vials. They’re built in and factory set.
- Turn the laser on by turning the battery cap switch.
- Mark the center of the laser dot and subtract 1/2″ to reference the bottom of the level.
Features:
- 12.5mm optics – Smaller dot size at distance
- Built Construction Tough – No Tubes to burn out or break.
- Strong Aircraft Aluminum – Once piece case design won’t bend or twist and it’s weather protected.
- Recessed Level Vials – Easy to read but well protected.
- Industrial Grade Optics – Fully coated for maximum performance.
- Factory Calibrated – No field adjustments required for the lifetime of the laser tool.
- Uses Wedge Prisms for optical calibration – no set screws.
- 1/4″ x 20 tpi Mounting Hole – Can be mounted to standard camera tripods for stand alone operation.
- Battery Operated – Complete portability with easy to replace “Photo” batteries. Over 30 hours of continuous operation per set.
- 5 minute Level Vial – 9 times more accurate than standard level vials.
- Beam On Indicator Light – Lights when the laser beam is turned on.
- Solid Brass End Cap – Used to turn laser on for years of trouble free service.

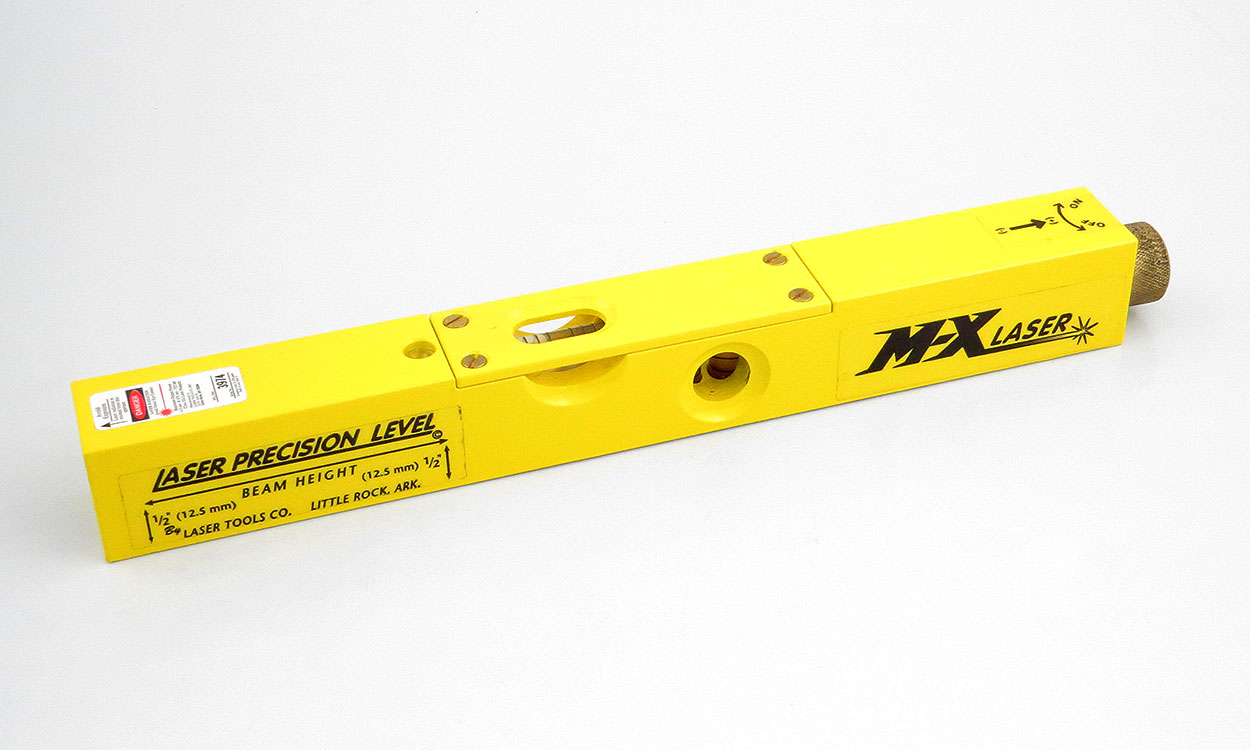

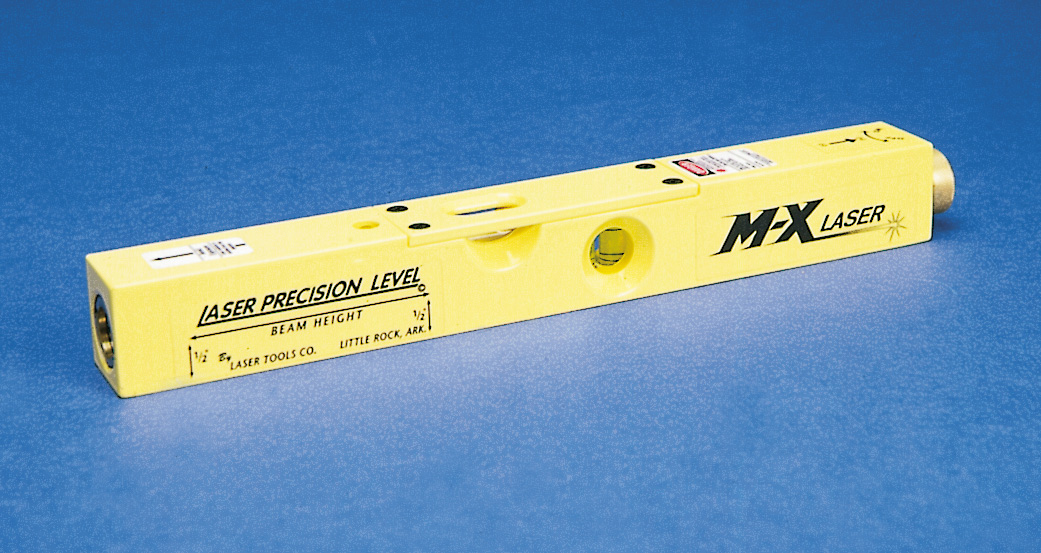

L100M
- MX Laser Precision Level™.
- Includes: 5 arc minute level vial, 12.5 mm optics for long distance, 635 nm, 5 mw laser system and machined bottom for precise layouts.
L100X
- Extreme” Laser Precision Level™.
- Includes: 10mw, 635nm laser, (1) 5 arc minute level vial, (2) 30 arc minute plumb vials, machined bottom for precision layouts.
- Uses all standard L100M style accessories.
L100MLK – MX Layout Kit
- Includes: L100M laser, AP100A leveling adapter plate, AP90C Beam Bender™, and AP40 hard case.
L100M MSHA
- MSHA Certified for use in hazardous environments esp. methane-air mixtures.
- Includes Level & Plumb vials and machined bottom for precision layouts.
- Uses all Standard L100 style accessories.

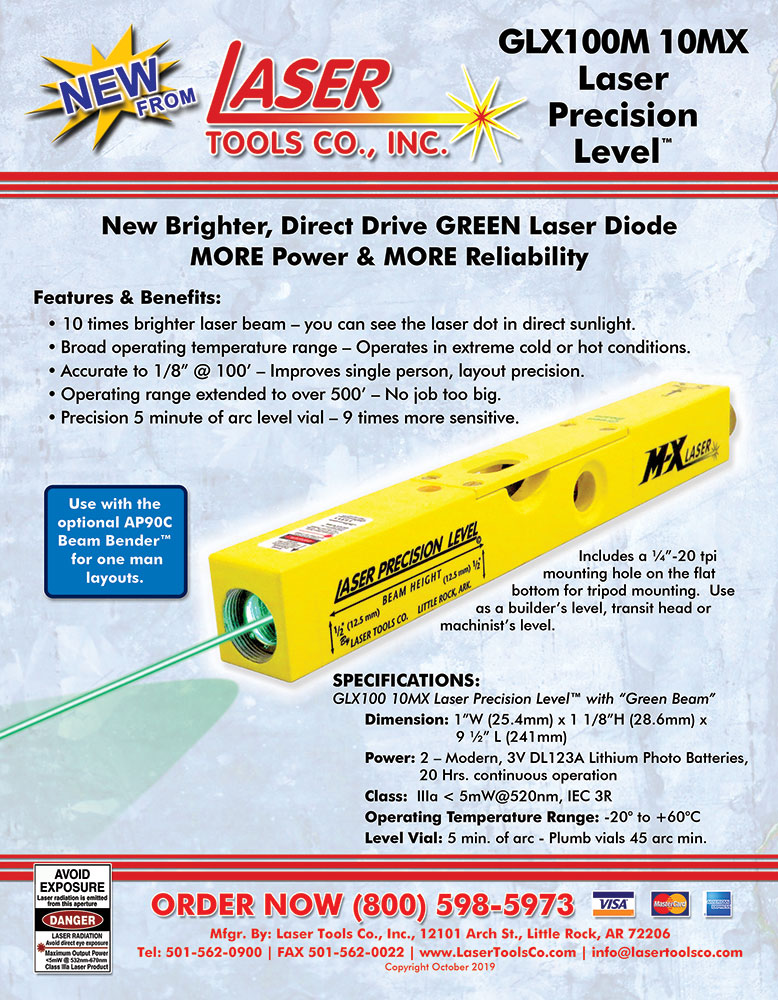

GL100M – Green Laser Technology™
- Includes: 5 arc minute level vial
- 50mm fl optics for long distance
- 523 nm, 5 mw laser system
- Machined bottom for precise layouts.
GL100M MSHA – Green Laser Technology™
- Intrinsically Safe Leveling and Alignment
- MSHA Certified for use in hazardous environments especially methane-air mixtures.
- Includes:
- 5 arc minute level vial
- 50mm fl optics for long distance
- 523 nm, 5 mw laser system
- Includes Level & Plumb vials and machined bottom for precision layouts.
- Uses all Standard L100 style accessories.
